CNC Machining Vs SLS 3D Printing

Today’s manufacturing industry highly respects CNC machining and SLS 3D printing. They have become key for making parts. CNC machining is known for its precision and versatility. It sculpts materials to meet ultra-high precision while realizing complex designs. This subtractive manufacturing method has become indispensable for the production of high-quality metal and plastic parts in a wide range of industries.

SLS (Selective Laser Sintering) 3D printing is a form of additive manufacturing. It builds objects layer by layer. This enables the making of parts with complex shapes. They are hard or impossible to make with traditional methods. CNC machining is great for mass production. It excels in durability and precision. But, SLS 3D printing is unrivaled for prototyping and customizing parts. It offers great flexibility and efficiency. Together, these two technologies offer a complete range of machining options for part processing. Yonglihao Machinery will show you the differences between these two processes.

What is CNC Machining?

CNC machining, also known as computer numerical control machining, is a subtractive manufacturing process. It creates precision parts by removing material from blanks with cutting tools that are precisely controlled by a computer. CNC machining is trusted for its reliability and accuracy. It can produce fine parts with tight tolerances. Therefore, CNC machining is suitable for making prototype samples as well as mass production.If you want to learn more about the principles and advantages of CNC machining, please check out the article What is CNC machining?

How CNC Machining Works

CNC machining has several important steps, beginning with design and ending with the final part. First, engineers use CAD (Computer Aided Design) tools to create a 2D or 3D model of the desired part. CAM (Computer Aided Manufacturing) software is then used to convert the CAD file into instructions, known as G-code machine instructions.

When the preparation is complete, the G-code is sent to the CNC machine. The CNC machine then uses different cutting tools to cut the material from the raw material. The CNC machine works on multiple axes, usually three, four, or five. This helps it to accurately produce complex shapes. Stepper motors or servo motors control each axis, resulting in precise movement and accurate cutting.

Common CNC Machines and Their Functions

There are various types of tools used in CNC machining. Each type of tool is designed for a specific task and purpose. Here are some of the most commonly used types:

• CNC Milling Machine: This is a machine that uses a rotating tool to cut materials. CNC milling machines are perfect for making fine parts with complex shapes and are often used in industries that require high precision.
• CNC Lathe: Lathes create parts by rotating material and using cutting tools. CNC lathes are perfect for making cylindrical parts. This is why they are very popular in the automotive and aerospace manufacturing industries.
• CNC Drills: CNC drills are specialized in drilling holes of precise diameter. They are often used in conjunction with other CNC tools to manufacture parts that require precise hole placement.
• CNC Grinders: CNC grinders use grinding wheels to smooth metal parts. They are important for manufacturing surfaces that need to be cleaned, such as medical tools or automotive parts.
• Plasma and Laser Cutting Machines: Plasma cutting machines use ionized gas to cut metal. Laser cutters, on the other hand, use a directed beam of light to make high-precision cuts. These tools are typically used to process sheet metal and allow for fine design while reducing the amount of material used.

In addition to these types, CNC machines have different axis capabilities. This greatly affects the complexity of the parts they can make. Standard configurations include:

• 3-axis Machines: These machines can move in the X, Y, and Z directions. They are suitable for making simple parts.
• 4-axis Machines: These machines have an additional rotating part, usually along the X-axis, and can create more complex shapes.
• 5-axis Machines: These machines can move in all five axes, allowing complex parts to be machined with high precision and flexibility.

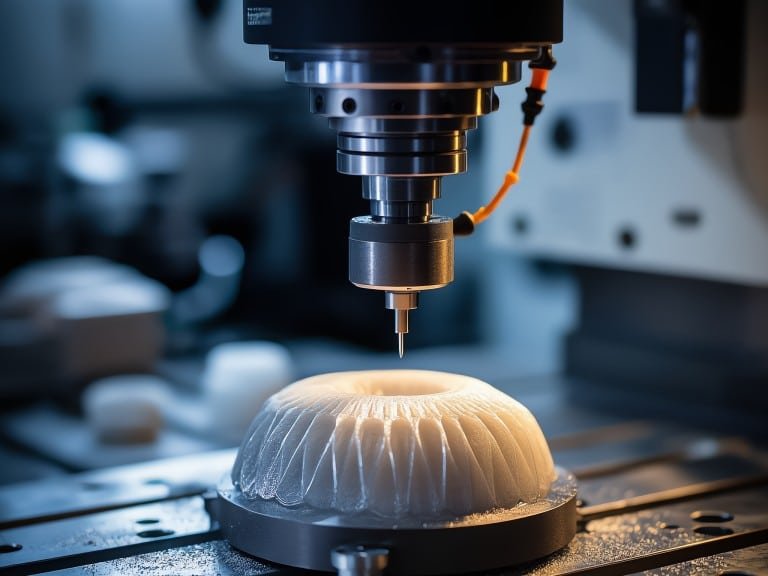

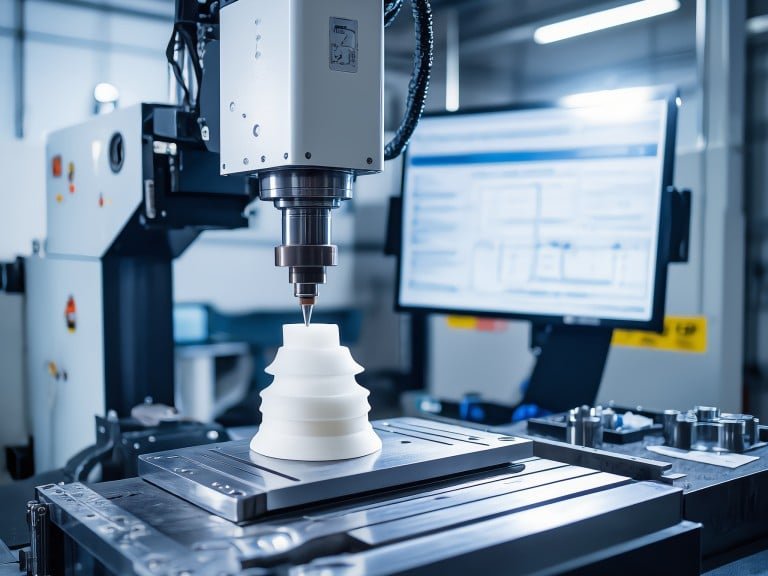

What is 3D Printing?

3D printing is also known as an additive manufacturing process. It is a method of creating items by adding digital designs layer by layer. This technology can produce complex shapes that are difficult to create with standard manufacturing methods.

3D printing began at MIT in the late 1980s. Today it has evolved into many fields, changing the way prototypes are made. In addition, 3D printing is rapidly developing customized designs in areas such as healthcare, automotive, and electronics.

Unlike CNC machining, which removes material to form a part. 3D printing reduces waste by using only the material needed. This ability and its skill in creating complex shapes make 3D printing an important tool for prototyping and producing small quantities of unique parts without additional work.

How 3D Printing Works

The 3D printing process begins with the creation of a 3D model, usually using CAD (Computer Aided Design) software. Alternatively, a 3D scanner can be used which can convert the physical object into a digital model. Once the model has been created, it is checked for errors such as gaps or overlapping surfaces. This is because these can affect the final print.

Next, the model will be processed through a slicing program. The slicing program divides the model into thin, two-dimensional layers, which are produced as a G-code file. This file serves as a guide for the 3D printer, helping it to add material one layer at a time. In addition, the way the material is added in 3D printing depends on the type of technology used, such as FDM (Fused Deposition Modeling), SLA (Stereolithography), or SLS (Selective Laser Sintering).

What Are the Different Types of 3D Printing Technology?

There are different types of 3D printing technologies. Each type has its own methods, materials, and uses:

• Material extrusion: This method uses heated plastic material extruded through a nozzle to create layers. It is often used for rapid creation of prototypes and working parts, such as in the consumer electronics and automotive sectors.
• Vat Polymerization: This process uses a liquid resin that hardens into a solid layer under light. Vat polymerization provides excellent detail and is commonly used for dental and medical models as well as jewelry.
• Powder bed melting: This method uses a laser or electron beam to combine powdered materials layer by layer. This 3D printing technique is ideal for processing metals and high-strength materials. It is therefore ideal for use in the aircraft, automotive, and medical sectors.
• Binder jetting: First, this method deposits a liquid binder onto a bed of powder. The powder bed then hardens to form the final part. Binder jetting can be used for metals, ceramics, and clays. It is often used to make metal parts, which are then further processed for strength.
• Material Jetting: This technique sprays tiny droplets of material like inkjet printing. These droplets then harden when deposited. It is known for creating smooth and high-quality surfaces and is commonly used in experimental and medical modeling.
• Direct Energy Deposition (DED): In this process, directed energy, such as a laser or electron beam, melts the material as it is deposited. DED is used in areas such as defense and aerospace to hold objects in place and to manufacture large metal parts.
• Sheet lamination: In this method, multiple layers of material are combined and cut into three-dimensional shapes. It is often used to make inexpensive metal or paper parts, especially when fineness is not important.

Key Differences Between CNC Machining and SLS 3D Printing

CNC machining and SLS 3D printing are somewhat complementary. Each has unique advantages based on the needed precision, material, and complexity.

The core difference between CNC machining and SLS 3D printing is the underlying method by which they create parts. CNC machining is a subtractive process that begins with the careful cutting of a block of material to reveal the final product. This method is known for its precision. It can make parts from many materials, such as metals, plastics, and composites. It excels at producing durable, high-quality parts with tight tolerances. In contrast, SLS 3D printing is an additive process that uses powdered materials to create parts layer by layer. This technology offers big advantages. It can create complex shapes that are hard or impossible to make by subtraction. It also does not need support structures, allowing for more design freedom.

In terms of materials, CNC machining and SLS 3D printing work with a wide range of substances. CNC machining deals mainly with metals like aluminum, brass, and stainless steel, and with plastics like ABS and polycarbonate. SLS 3D printing, while also able to process a wide range of plastics, can also process special materials like nylon, thermoplastic polyurethanes, and metallic superalloys.

CNC machining is more accurate and makes smoother parts. They have tighter tolerances, to within +/- 0.005mm. The subtractive nature of CNC machining allows for very high-quality surface finishes, making it ideal for applications where surface smoothness is critical. SLS 3D-printed parts may have a slightly grainy surface. This is due to the layer-by-layer construction process. They have typical accuracies of around ± 0.1 mm. However, post-processing techniques can significantly improve the surface quality of 3D printed parts, closing the gap between the two technologies in terms of finish.

Advantages of CNC Machining

CNC machining is renowned for its high precision and accuracy, making it an indispensable technology in modern manufacturing. With tolerances as tight as ±0.005mm, it ensures that parts are produced with exact dimensions and shapes as per design specifications. This level of precision is critical for applications requiring perfect fits, such as in aerospace, automotive, and medical industries, where the reliability and functionality of every component are paramount.

In addition, CNC machining delivers exceptional surface finishes. Its advanced machining processes can produce extremely smooth surfaces, which can also be customized to meet specific requirements. This outstanding surface quality not only enhances the appearance of the parts but also improves their performance, such as reducing friction or increasing resistance to corrosion.

CNC machining is also highly suitable for large-scale production. With automated processes, CNC machines can efficiently produce large quantities of parts with consistent quality and precision. This makes it an ideal choice for industries that demand high-volume manufacturing without compromising on accuracy.

When it comes to material versatility, CNC machining excels in handling a wide range of materials. It can process various metals and non-metals, including aluminum, stainless steel, titanium, and plastics. This flexibility allows it to cater to diverse industry needs, whether for lightweight designs or high-strength applications.

Finally, CNC machining is particularly well-suited for components requiring strength and durability. By working with high-performance materials, CNC machining can produce robust and long-lasting parts capable of withstanding high stress and extreme conditions. These characteristics are especially vital in industries like aerospace, automotive, and medical, where safety and performance are non-negotiable.

If you want to learn more about the advantages and limitations of CNC machining, check out the article What are the Advantages and Limitations of CNC Machining.

Advantages of SLS 3D Printing

SLS (Selective Laser Sintering) 3D printing excels at producing parts with complex geometries and intricate internal features. Unlike other additive manufacturing methods, SLS does not require support structures, allowing for seamless creation of designs that would be challenging or impossible to achieve with traditional manufacturing techniques. This makes it an ideal choice for engineers and designers pushing the boundaries of innovation.

One of the standout benefits of SLS 3D printing is its minimal material waste, especially when compared to subtractive methods like CNC machining. Traditional manufacturing often involves carving material from a solid block, resulting in significant waste. In contrast, SLS builds parts layer by layer, using only the material necessary for the design. Additionally, unused powder from the build chamber can often be recycled for future prints, further reducing waste and making SLS a more sustainable and environmentally friendly option.

SLS is also well-suited for functional prototyping and low-volume production. Its ability to produce durable, high-quality parts with excellent mechanical properties makes it a go-to solution for testing and validating designs before scaling up production. This efficiency in creating functional prototypes helps reduce development time and costs.

Another key advantage of SLS 3D printing is its ability to create parts with unique material properties. By using advanced materials such as nylon, SLS can produce parts that are lightweight, strong, and resistant to heat or chemicals. This versatility makes it a preferred choice for industries like aerospace, automotive, and healthcare, where specialized material performance is often required.

CNC Machining Limitations

While CNC machining is a highly precise and versatile manufacturing method, it does have some limitations, particularly when dealing with complex geometries and intricate internal features. The subtractive nature of the process makes it less efficient for creating designs with intricate details or internal cavities, as these often require additional setups or specialized tooling.

Another consideration is the significant material waste associated with CNC machining. Unlike additive manufacturing processes, CNC machining carves parts out of solid blocks of material, resulting in a substantial amount of leftover scrap. This can make it less environmentally friendly and less cost-effective for certain applications.

Additionally, tooling costs can be high for complex parts. Producing intricate designs often requires custom tools or multiple machining operations, which can drive up both the initial setup costs and production time. This makes CNC machining more suitable for simpler designs or high-volume production runs where the upfront investment can be amortized over a larger quantity of parts.

SLS 3D Printing Limitations

While SLS 3D printing offers many advantages, it does come with certain limitations. One notable drawback is that the surface finish may not be as smooth as CNC-machined parts. SLS parts often have a slightly rough or grainy texture due to the powder-based process, which may require post-processing for applications where a polished finish is essential.

Another limitation is the restricted range of material options compared to CNC machining. While SLS primarily uses materials like nylon and certain composites, CNC machining can work with a much broader variety of metals, plastics, and other materials, making it more versatile for specific applications.

SLS 3D printing can also be slower for high-volume production. The layer-by-layer additive process, while efficient for prototyping and low-volume runs, may not match the speed and scalability of CNC machining or other traditional manufacturing methods when producing large quantities of parts.

Lastly, while SLS generally does not require support structures for most designs, certain geometries may still need additional support during the printing process. This can add complexity to the design and post-processing stages, particularly for parts with overhangs or intricate features

Applications of CNC Machining and SLS 3D Printing in Various Industries

CNC machining and SLS 3D printing technologies are being used in a wide range of industries, each utilizing their unique advantages to solve complex manufacturing challenges.

Aerospace: CNC machining is precise and reliable. It is ideal for making critical parts like the engine and landing gear. These parts need high strength and tight tolerances. The technology can machine many materials, including high-performance alloys. This ability is critical for meeting the tough requirements of aerospace applications. At the same time, SLS 3D printing makes lightweight parts with complex shapes. This can greatly cut aircraft weight and boost fuel efficiency and performance. The technology’s rapid prototyping capabilities also accelerate the development process from concept to flight.

Medical: Due to the precision of CNC machining is crucial. Therefore, it is key to making customized surgical tools, orthopedic implants, and medical device parts. In addition, these parts need precise specs to ensure patient safety and efficacy. SLS 3D printing has an advantage. It can make custom prosthetic and dental implants for the patient. This customization potential is invaluable for patient comfort and rehab outcomes. It provides specialist rehab solutions.

Automotive: CNC machining is robust and precise. It allows for making durable parts crucial to car performance and safety. These parts include engine blocks and chassis components. SLS 3D printing is key for prototyping. It allows fast testing of new designs. In addition, its ability to create complex, lightweight parts helps optimize vehicle design.

Cost, Volume, and Time Comparison

When comparing the start-up costs, material costs, and production times of CNC machining and SLS 3D printing, the comparison needs to be tailored to the project’s specific requirements. Both processes have unique advantages and factors to consider. CNC machining has a higher initial set-up cost. This is due to the need for precise tooling and programming. This makes it less cost-effective for very small batch production. However, for some projects, especially those needing metal parts, material costs may be lower. Bulk material costs may be lower than the special powders for SLS 3D printing. CNC machining may be faster for making single parts due to faster material removal. But, it’s slower for complex parts.

Choose the right processing technology!

Therefore, the key to choosing between CNC machining and SLS 3D printing in modern manufacturing is understanding the benefits of each technology. Yonglihao Machinery provides CNC machining services. We are known for their precision and excellent surface finish. This makes them the preferred choice for high-volume production of metal components and high-precision parts.

On the other hand, SLS 3D printing shines in applications requiring intricate geometries and rapid prototyping. It is particularly advantageous for creating complex shapes that would be difficult or prohibitively expensive to achieve with traditional subtractive methods. Many rapid prototyping companies rely on SLS 3D printing for its ability to quickly produce detailed prototypes and validate designs before moving to full-scale production.

Ultimately, companies must weigh several factors when selecting the right process, including production volume, material requirements, and the complexity of the parts. In some cases, combining both technologies can be a strategic choice—leveraging SLS for quick prototyping and design validation, followed by CNC machining for final production with enhanced precision and surface quality.

FAQ

Which method is more cost-effective for low-volume production?

SLS 3D printing is often cheaper for small production runs. This is because of its lower setup costs and the ability to make complex shapes without special tools or fixtures.

Can CNC machining and SLS 3D printing be used together?

Yes, CNC machining and SLS 3D printing can be used in a complementary way, taking full advantage of the benefits of both processes. For example, SLS 3D printing can be used to quickly prototype a part to test fit and function. Once the design is final, we can use CNC machining to make the final part. In addition, we will use materials better for the application, or to refine the 3D printed part.
